Boundless Racing

ASR Advanced Bucket Seat (Large)

ASR Advanced Bucket Seat (Large)

$387.99 USD
$387.99 USD
Sale Sold out

The Advanced Bucket Seat is made with high quality fiberglass and is designed for optimal racing performance.

Comfortable design that will support your entire body over long racing sessions.

Side brackets are included with the Advanced Bucket Seat for an easy mounting solution to your Advanced SimRacing-brand chassis.

The seat front features high quality breathable material for enhanced durability and longevity.

Removable seat padding for optimal adjustment.

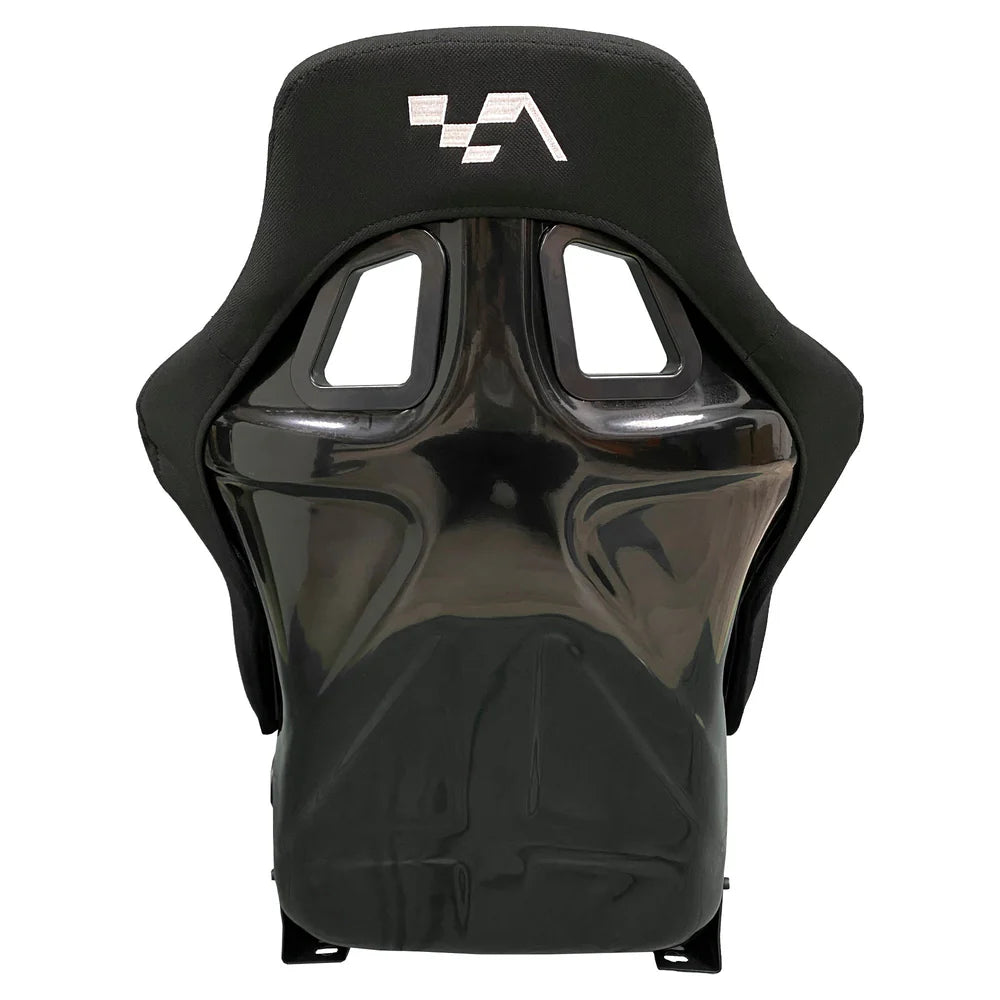

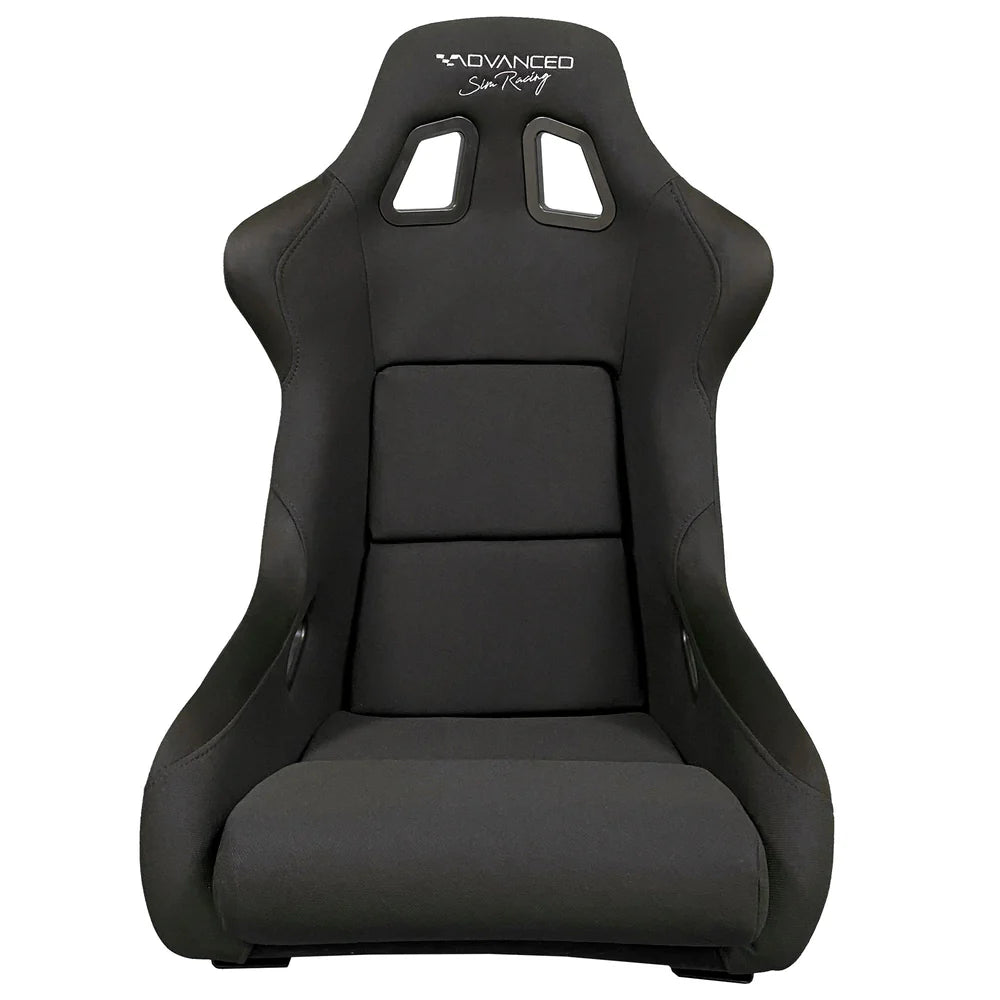

The overall color of the seat is black and it has white stitching all around. It also features the Advanced SimRacing official logo on the front and the back of the headrest.

SPECIFICATIONS

Large:

  • Seat width (shoulders) : 21"
  • Seat width (lower back) : 14"
  • Seat width (thighs) : 16"
  • Back rest (vertical, from top to bottom) : 35"
  • Back rest (horizontal at shoulders height) : 25"
  • Seat length : 23"
INSTALLATION GUIDE
  • Without Seat Sliders
  1. Install the 22’ profiles on the chassis. Tighten the bolts holding the corner gussets to the 22’ profile, but leave the bolts attaching the 22’ profile to the chassis loose.
  2. Install the seat brackets on the 22’ profile. Make sure the inside edge of the seat bracket is flush with the inside edge of the 22’ profile, then tighten the bolts holding the seat brackets on the 22’ profile.
  3. Install the seat in the brackets, be careful not to scratch the seat while doing this. If necessary, slide the 22’ profile further apart.
  4. Tighten the seat brackets to the seat in the desired position. Make sure you are using the same mounting holes on each side.
  5. Make sure the space between the 22’ profiles and the base is equal on each side to center the seat with the chassis. It is okay for the 22’ profiles not to be parallel with each other, as long as the seat is centered and straight.
  6. Your rig is ready to go!
  • With Seat Sliders
  1. Install the 22’ profiles on the chassis. Tighten the bolts holding the corner gussets to the 22’ profile, but leave the bolts attaching the 22’ profile to the chassis loose.
  2. Install the seat sliders on the seat brackets. Make sure the inside edge of the seat slider is flush with inside edge of the seat bracket.
  3. Install the seat slider and seat bracket assembly on the seat while it is off the chassis. Make sure you are using the same mounting holes on each side. Be careful not to scratch the seat while doing this.
  4. Make sure the two seat sliders are at the same locking position.
  5. Bend the U handle bar for the seat sliders to make it wider or narrower depending on fitment.
  6. Install the U handle bar while being careful not to hurt your fingers.
  7. Install the seat assembly on the 22’ profiles.
  8. Tighten both front or rear bolts holding the sliders on the 22’ profile.
  9. Slide seat forwards or backwards to have access to the other bolts. Tighten them.
  10. Center the seat with the chassis by moving the whole 22’ profile and seat assembly. Be careful not to scratch the profiles.
  11. Tighten the corner gusset bolts that were left loose at the beginning.
  12. Your rig is ready to go!
View full details

SHIPPING AND LEAD TIME

LEAD TIME IS ANYWHERE BETWEEEN 5-10 DAYS FOR ALL ASR PRODUCTS.

FREE SHIPPING IS INCLUDED.

WARRANTY

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@boundlessracing.com for information or claims in regards to this lifetime warranty.

WARRANTY COVERAGE LIMITATIONS

  • Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use.
  • Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product.
  • Damage resulting from misuse, abuse, negligence, accidents or shipping damage.
  • Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product.
  • Normal and expected wear and tear.
  • Damages incurred during transportation by ASR's shipping partners or by the customers upon reception of the product.
  • Dissatisfaction due to buyer's remorse.
