Boundless Racing

Simucube Wheelbase Mount

Simucube Wheelbase Mount

$104.99 USD
$104.99 USD
Sale Sold out

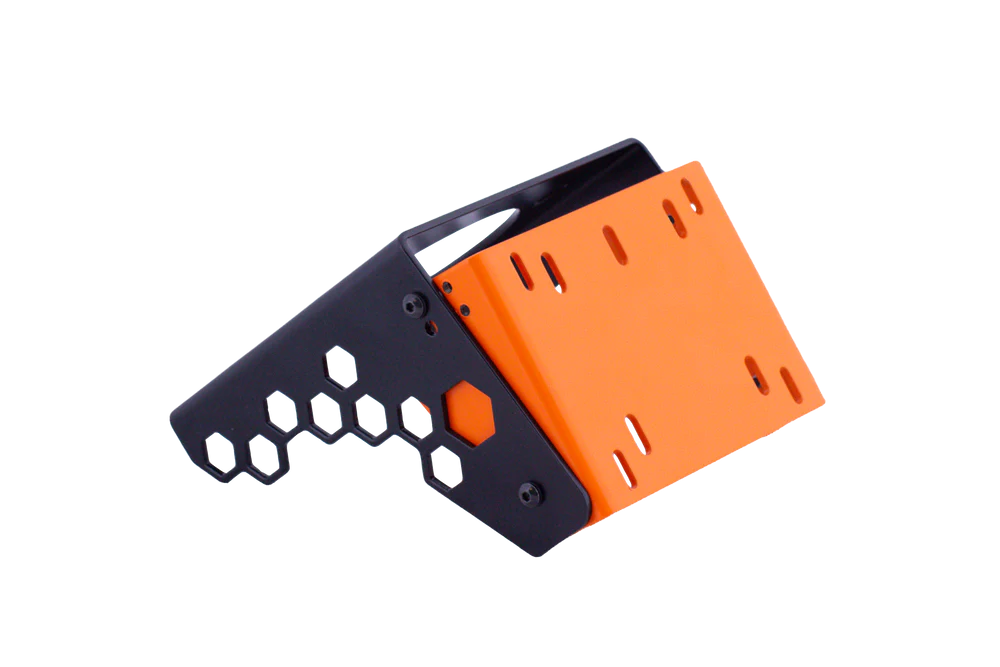

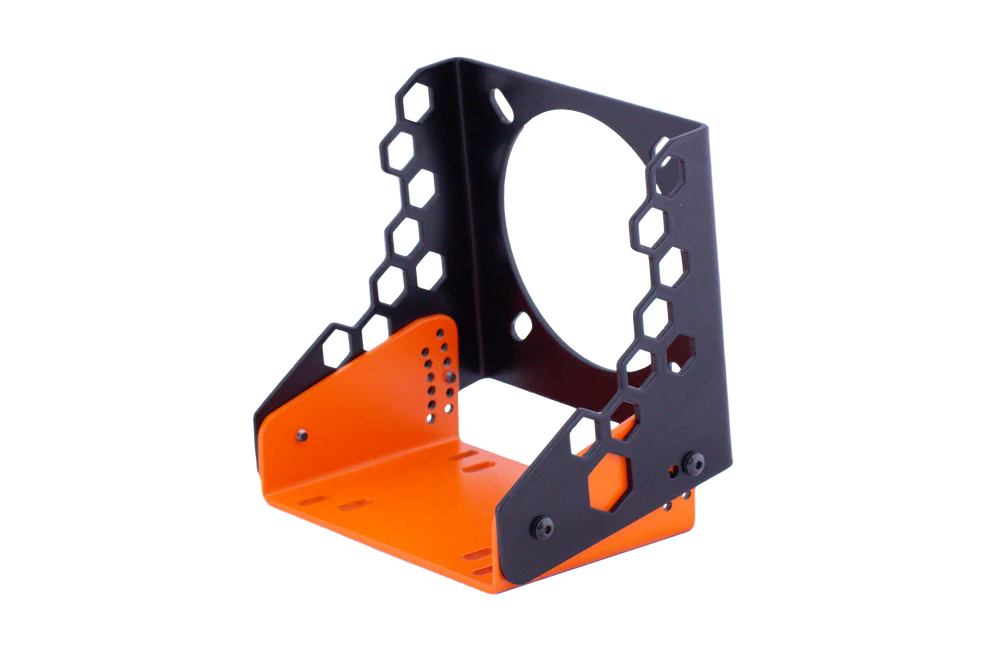

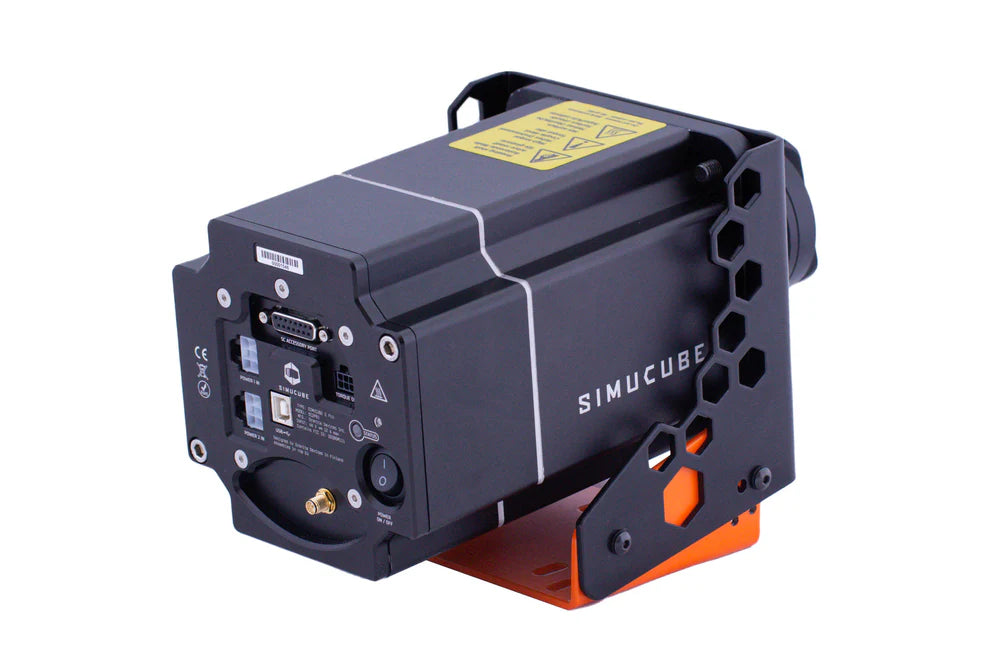

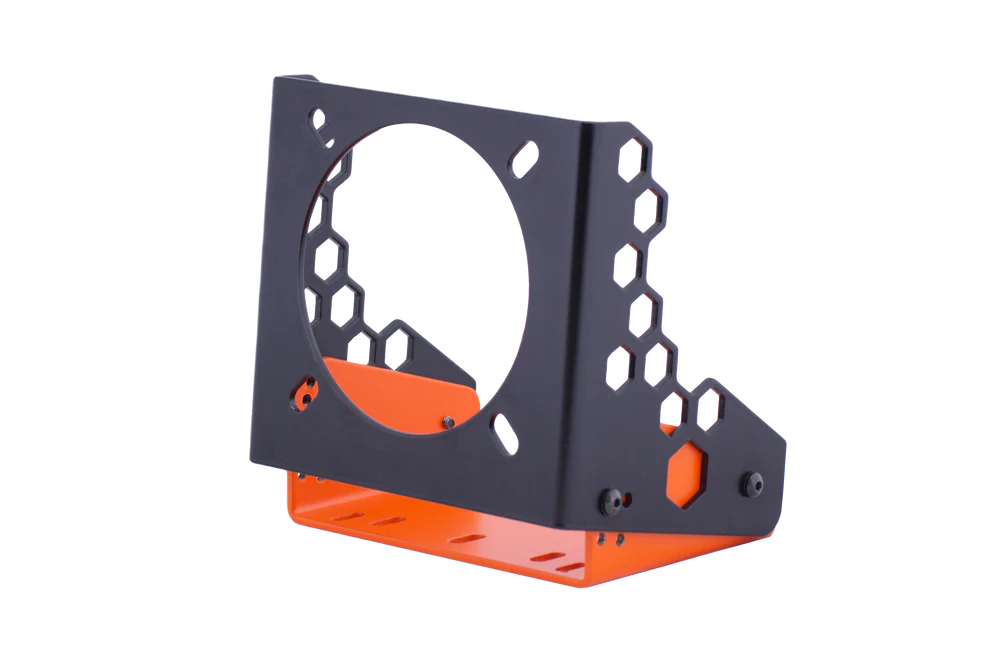

The perfect but straightforward mounting option for your Simucube 2 Wheelbase and also compatible with many other front-mounted direct drive force feedback wheelbases.

SPECIFICATIONS

  • Weight: 1.48kg
  • DImensions: 170mm x 18mm x 14mm
  • Measurements: Maximum height 185 mm, Minimum height 155 mm, Width 164 mm, Depth 128 mm
  •  Maximum tilt angle: 20° degrees (Simucube 2 Sport & Pro), 12.5° degrees (Simucube 2 Ultimate) if the rear of the Ultimate wheel base touches the surface
  • Hole pattern: 78.4 mm x 66 mm, compatible with many readily available deck mounts
  • Mounting dimensions: Download here
  • Drilling guide: Download here
  • Manual: Download Manual 1 & Download manual 2

WHAT'S INCLUDED

  • 4 x M5x10 button head
  • 4 x M5 washer
  • 4 x M8x25 button head
  • 4 x M8 washer
  • 4 x M8 nyloc nut
  • 4 x M6x12 cap head screw
  • 4 x M6 washer
View full details

SHIPPING AND LEAD TIME

LEAD TIME IS ANYWHERE BETWEEEN 3-7 DAYS FOR ALL SIMUCUBE PRODUCTS.

FREE SHIPPING ON ALL SIMUCUBE PRODUCTS!
